Intuitive system
Designed and manufactured in Australia, Airtec's SmartOBM Truck and Trailer Scales deliver precise On-Board Mass (OBM) measurement for trucks and trailers equipped with airbag suspension. Whether you need a single AXS Sensor or a complete package with an optional mounting bracket pack, Airtec provides a smart, scalable solution designed for the Australian market.
At just 80mm in diameter—smaller than a coffee cup—the AXS Sensor is compact, and easy to install on any truck configuration. Built to IP66 standards, it’s engineered to withstand the toughest Australian outback conditions, ensuring long-lasting durability.
Powered by the latest Bluetooth-Mesh technology, the AXS Sensor offers:
- Extended range for fewer dropouts
- Auto-scanning for seamless connectivity
- Over-the-air firmware updates for continuous improvements

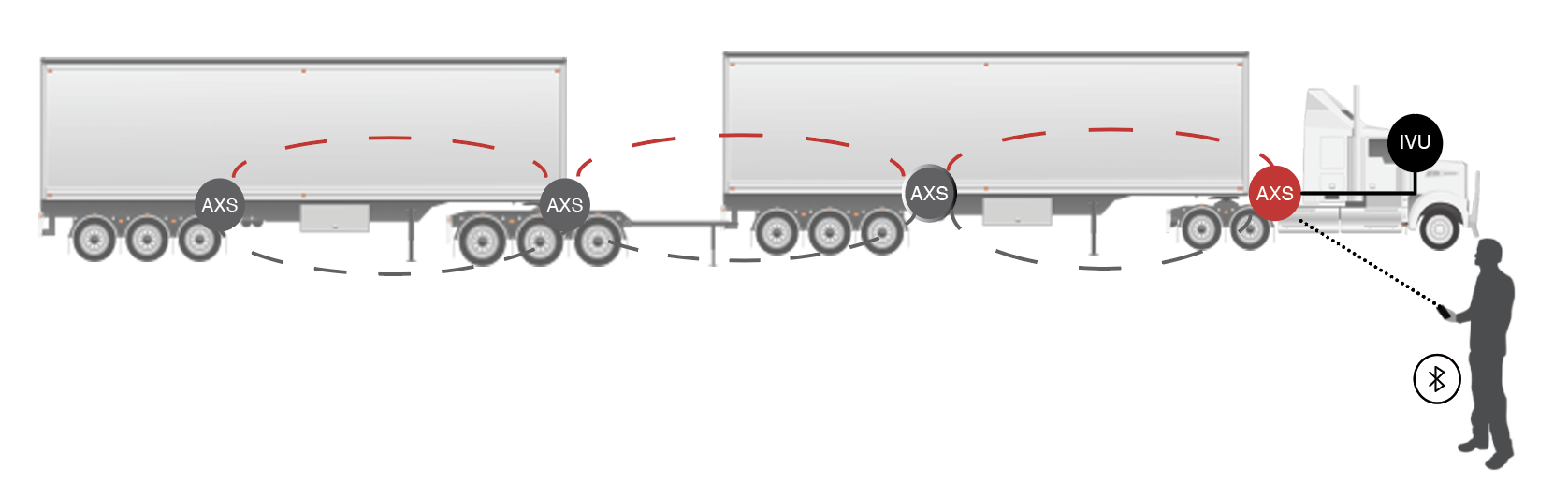

System Overview
The AXS, AXR, and TruckOBM mobile application are designed to work seamlessly together, enabling effortless integration in just three simple steps.
1.
The AXS is installed and calibrated on a trailer or dolly, transmitting weight data wirelessly via Bluetooth connectivity.
2.
The AXS is installed and calibrated on a truck or prime mover, with the SCAN function enabling seamless connection between the truck and trailer units to send and receive axle group weight data.
3.
The AXR Remote Display is installed in the vehicle and wirelessly connected to the AXS via Bluetooth. The TruckOBM App, used on a mobile phone or tablet, provides real-time weight data.
- The AXS is installed and calibrated on a trailer or dolly, transmitting weight data wirelessly via Bluetooth connectivity.
- The AXS is installed and calibrated on a truck or prime mover, with the SCAN function enabling seamless connection between the truck and trailer units to send and receive axle group weight data.
- The AXR Remote Display is installed in the vehicle and wirelessly connected to the AXS via Bluetooth. The TruckOBM App, used on a mobile phone or tablet, provides real-time weight data.
Note: The above scenario is typical of an A Double Combination. For other combinations you may require a different number of scales. For regulatory compliance SmartOBM systems must be installed by an authorised person and in accordance with the vehicle manufacturer’s specifications. All scales must be powered by a fused 12-24 Volt power source and activated when the ignition status is ‘on’.

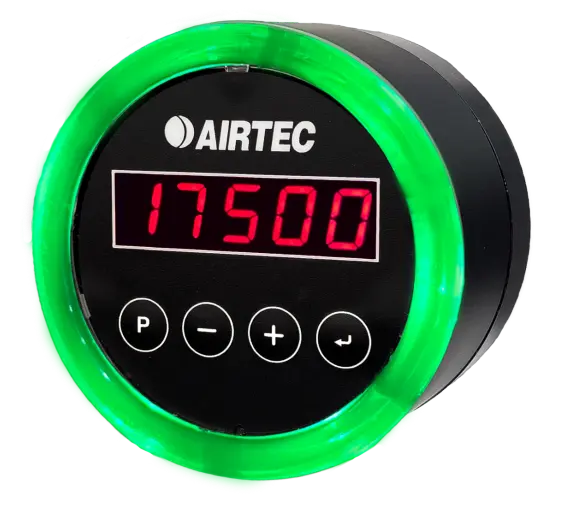

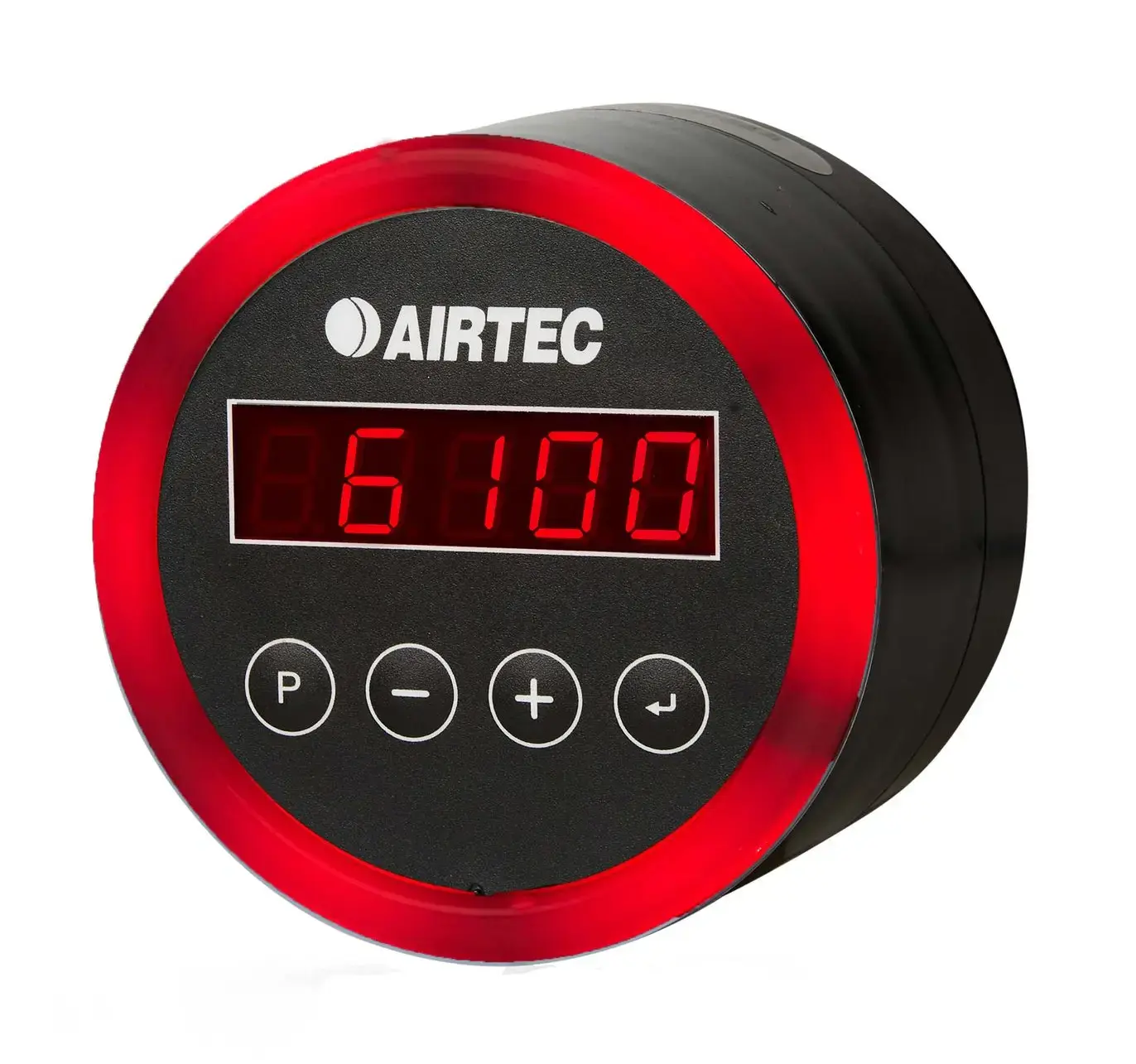

Product Overview
No. | Description | Function |
1 | LED Ring | Glows different colours depending on the device state. See table LED Ring Colour States. |
2 | 7-Segment LED Display | Shows the weight and program mode values. |
3 | [P] Program Button | Enter the program mode. |
4 | [-] Subtract Button | Reduces the reading value. |
5 | [+] Add Button | Increases the reading button. |
6 | [Enter] Enter button | Executes the program function. When held for 2 seconds the device enters scan mode. |
No. | Description | Function |
7 | Pressure Compensation Vent | IP Protection |
8 | Mounting Holes x4 | M5 Thread |
9 | Pressure Sensor Channel 1 | 1/4" OD Push in tube fitting. |
10 | Pressure Sensor Channel 2 | 1/4" OD Push in tube fitting. |
11 | Power [7-30vdc] and RS232 Connector | Power connector and RS232 communication. |
Product Overview
No. | Description | Function |
1 | LED Ring | Glows different colours depending on the device state. See table LED Ring Colour States. |
2 | 7-Segment LED Display | Shows the weight and program mode values. |
3 | [P] Program Button | Enter the program mode. |
4 | [-] Subtract Button | Reduces the reading value. |
5 | [+] Add Button | Increases the reading button. |
6 | [Enter] Enter button | Executes the program function. When held for 2 seconds the device enters scan mode. |
No. | Description | Function |
7 | Pressure Compensation Vent | IP Protection |
8 | Mounting Holes x4 | M5 Thread |
9 | Pressure Sensor Channel 1 | 1/4" OD Push in tube fitting. |
10 | Pressure Sensor Channel 2 | 1/4" OD Push in tube fitting. |
11 | Power [7-30vdc] and RS232 Connector | Power connector and RS232 communication. |
Features
The AXS Smart On-Board Mass offers a feature-packed solution, whether you need it for compliance or to endure Australia’s toughest driving conditions. The AXS series has you covered.
Wireless Connectivity
Display
Calibration
Power
App & In-Cab Remote Display View
Over The Air Update
Hardware Specifications
The AXS Truck Scales are available with single or dual sensors and come pre-programmed for seamless integration with your Truck, Prime Mover, or Trailer type.
*Retrofit Packs are also available for those looking to upgrade from our previous AXM/AXL model scales.
| Name
| AXS-1001 Single Sensor AXS-1002 Dual Sensor
|
Application
| Truck and trailers with air-bag suspension
| |
Enclosure
| Machined aluminium base with polycarbonate cover
| |
Display
| 5 segment LED display and light indicator, high visibility
| |
IP Rating
| IP66 on vehicle external installation
| |
Connectivity
| Bluetooth 5 compatible with AXS and AXM if upgraded to Bluetooth mesh
| |
| Optional Pack Inclusions*
|
|
| Optional Smart Cover
| The AXS Smart Cover is a tough, silicone protective cover designed to safeguard our AXS scales. It offers excellent protection while ensuring full functionality and extending the lifespan of your truck scales. The AXS Smart Cover keeps your truck scales protected, fully functional, and dependable in any condition. This cost-effective solution ensures the AXS scale is well-protected without compromising functionality. Its design enables effortless installation, requiring no screws or removal of the scale. Shop Now |
Hardware Specifications
The AXS Truck Scales are available with single or dual sensors and come pre-programmed for seamless integration with your Truck, Prime Mover, or Trailer type.
*Retrofit Packs are also available for those looking to upgrade from our previous AXM/AXL model scales.
| Name
| AXS-1001 Single Sensor AXS-1002 Dual Sensor
|
Application
| Truck and trailers with air-bag suspension
| |
Enclosure
| Machined aluminium base with polycarbonate cover
| |
Display
| 5 segment LED display and light indicator, high visibility
| |
IP Rating
| IP66 on vehicle external installation
| |
Connectivity
| Bluetooth 5 compatible with AXS and AXM if upgraded to Bluetooth mesh
|
Optional Pack Inclusions
*Retrofit Packs are also available for those looking to upgrade from our previous AXM/AXL model scales.

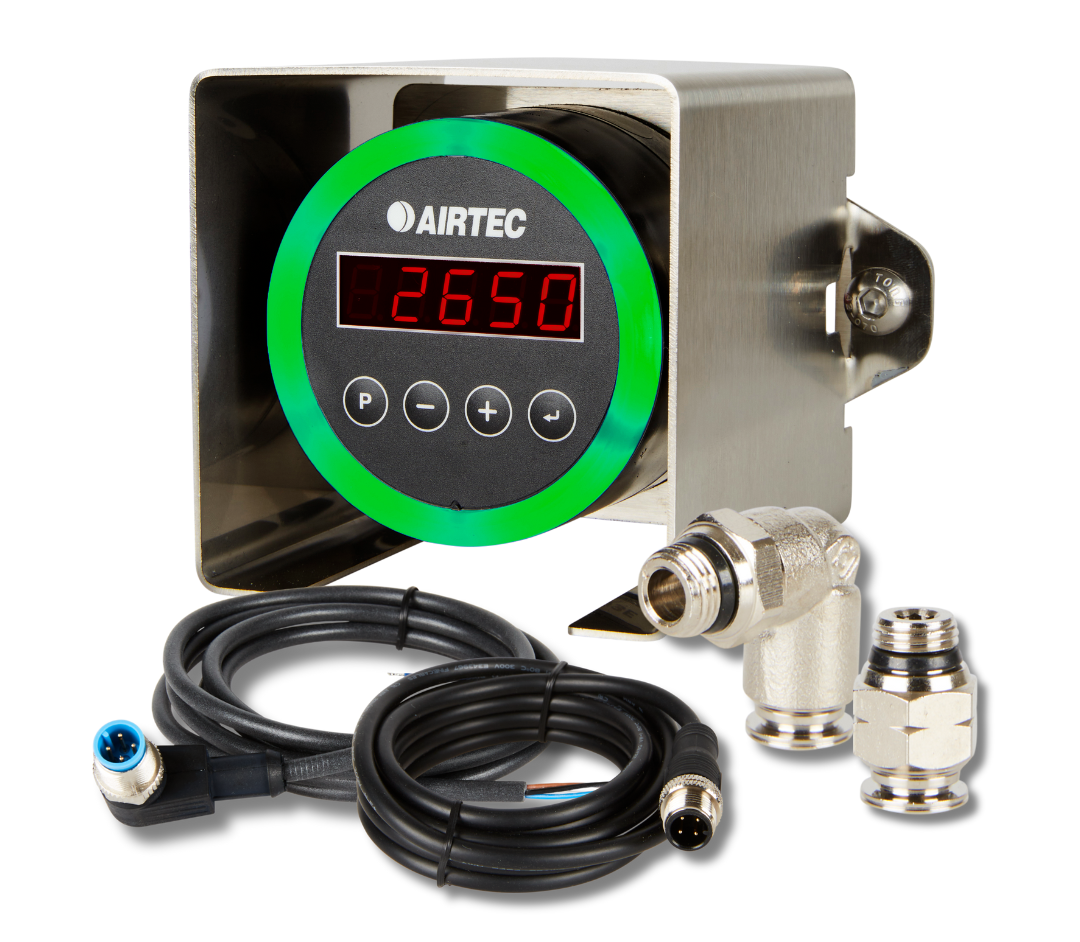

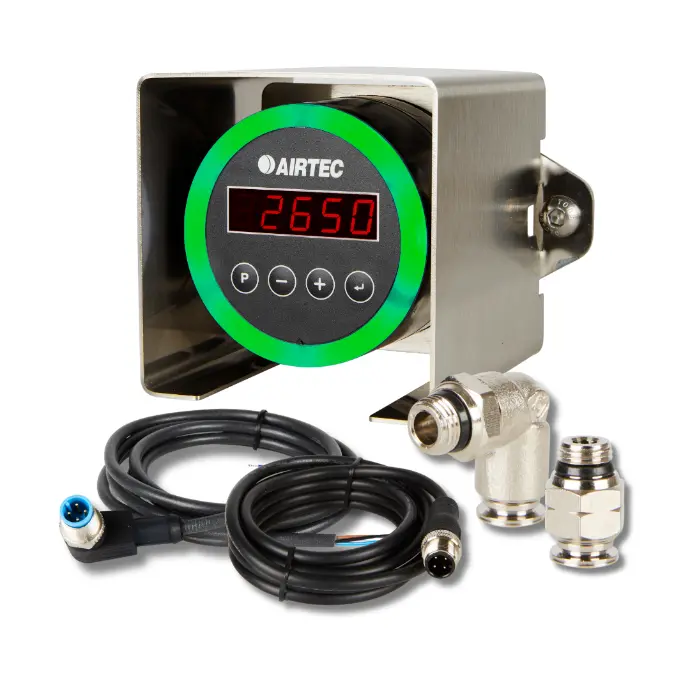

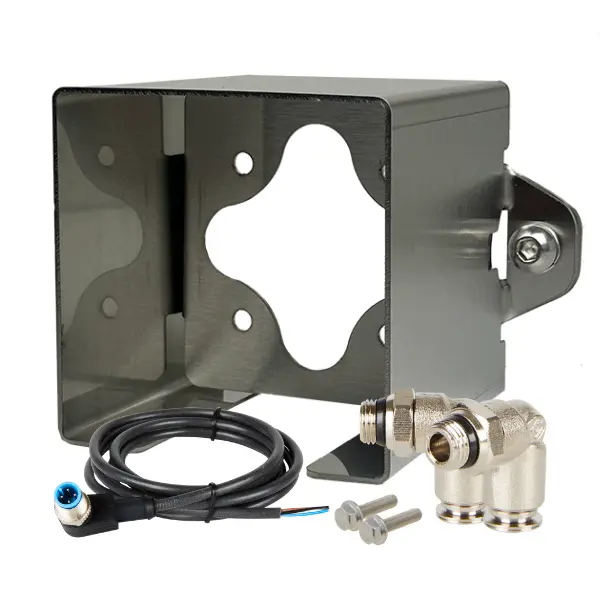

| AXS Shrouded Bracket Pack The AXS Shrouded Bracket is made from durable stainless steel, offering corrosion resistance and long-lasting performance even in tough conditions. Its compact size makes it easier to install on the back of the cab or on trailers, providing a more streamlined and efficient mounting solution. Designed to withstand Australia's harsh environment, this bracket offers reliable protection for your AXS unit. The pack also includes essential accessories such as elbow power fittings and elbow air fittings, providing a complete solution for easy installation and optimal system performance. |

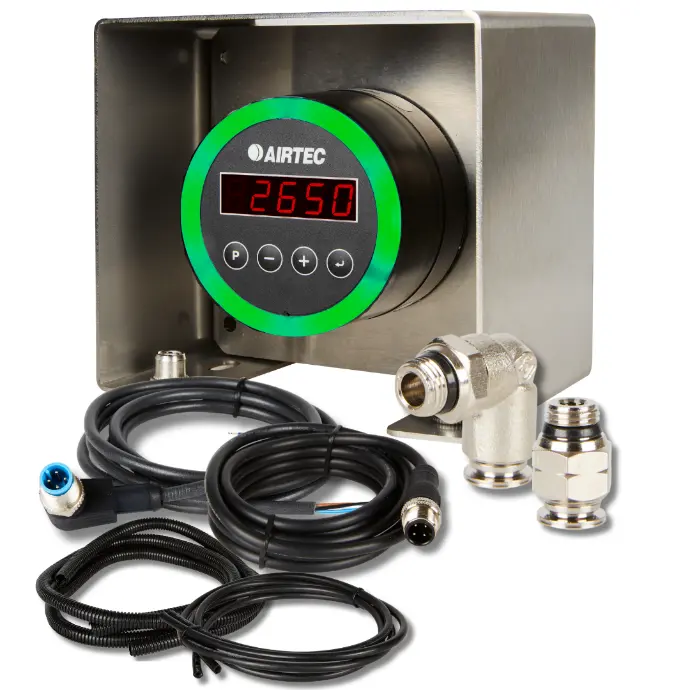

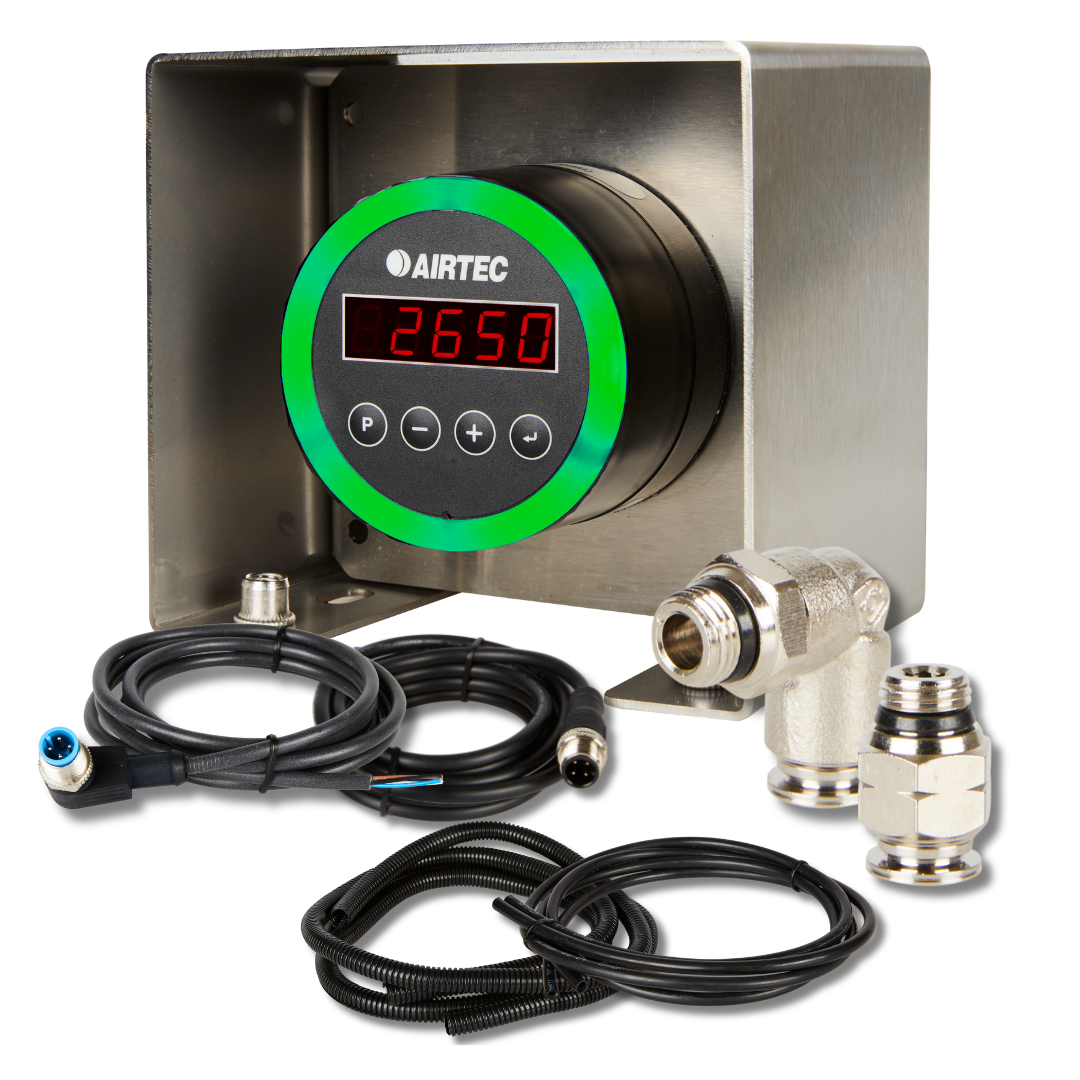

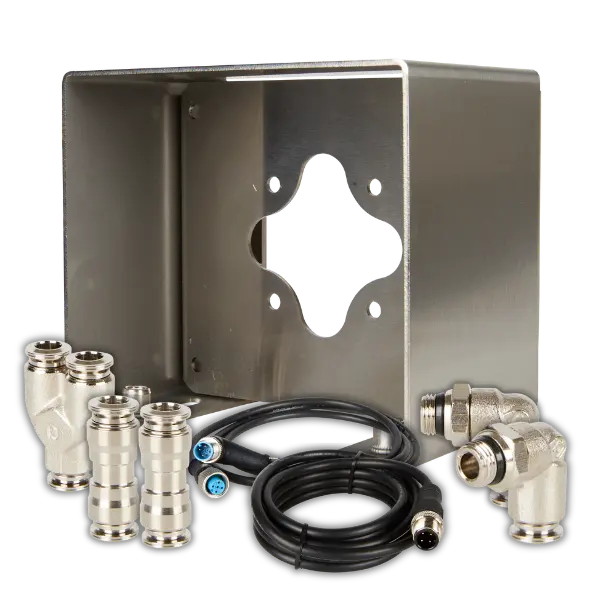

| AXS Large Shrouded Bracket Retrofit Pack The AXS Large Shrouded Bracket Pack is crafted from rugged stainless steel, ensuring corrosion resistance and exceptional durability in even the harshest conditions. Designed to withstand Australia's tough environment, this bracket pack provides reliable protection for your AXS unit. Perfect for mounting on the back of the cab or on the dolly, it offers maximum defence against the elements while keeping your system secure and easily accessible. |

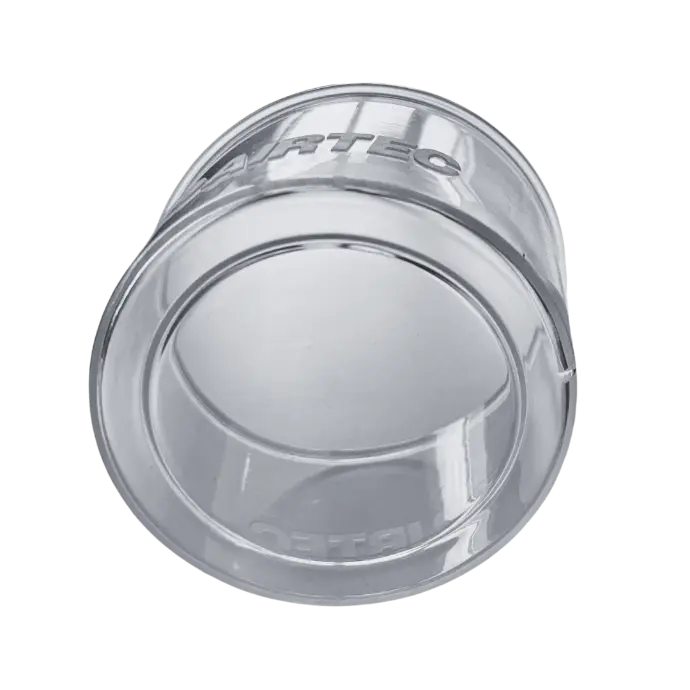

| Smart Cover The AXS Smart Cover is a tough, silicone protective cover designed to safeguard our AXS scales. It offers excellent protection while ensuring full functionality and extending the lifespan of your truck scales. The AXS Smart Cover keeps your truck scales protected, fully functional, and dependable in any condition. This cost-effective solution ensures the AXS scale is well-protected without compromising functionality. Its design enables effortless installation, requiring no screws or removal of the scale. Shop Now |
